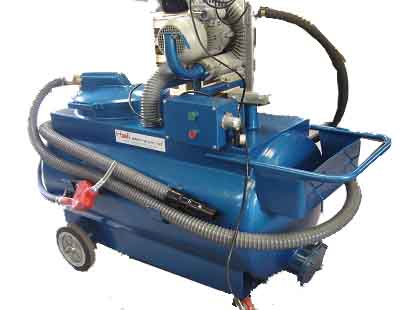

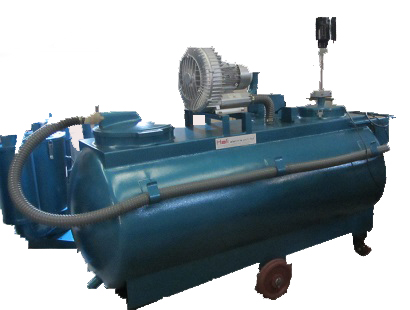

Hafi KAMEL MOBILE SUMP CLEANER CUM OIL RECYCLING UNIT
It extracts coolant, chips and swarf from sumps and settling tanks: filters the coolant; returns clean coolant; all in one continuous operation - 50 gallons in ten minutes,start to finish, on sumps regularly cleaned.Under controlled conditions it can also extract from one machine and deliver to another cutting time still more. It never overflows.
| TECHNICAL DATA | K - 50 | K - 100 |
|---|---|---|
| SUCTION MM WG | 3050 | 3050 |
| AIR DISPLACEMENT (CUBIC MTR./HR.) | 150 | 150 |
| TANK CAPACITY (GAL) | 50 | 100 |
APPLICATIONS : “ Kamel “ is mobile and very easy to use and versatile unit- Extracts coolant , chips and swarf from sumps and settling Tanks, Filter the Coolant and Returns Clean Coolant . Recommended for Coolant and Cutting oil Recycling .
TECHNICAL SPECIFICATIONS :
| MODELS- KAMEL | K - 50 | K - 100 |
|---|---|---|
| SUCTION MM WG | 3200 MM WG | 3200 MM WG |
| VACUUM PRODUCER | SIDE CHANNEL BLOWER | SIDE CHANNEL BLOWER |
| AIR DISPLACEMENT | 360 CUBIC METER PER HOUR | 2700 MM WG |
| AIR FLOW | 360 CUBIC METER PER HOUR | 350 CUBIC METER PER HOUR |
| MOTOR | 3 HP( 3 PHASE ) | 3 HP( 3 PHASE ) |
| COLLECTION CONTAINER | 454 LITRES | 227 LITRES |
| INTAKE HOSE | 50 MM DIA X 5 METERS | 50 MM DIA X 5 METERS |
| DISCHARGE HOSE | 32 MM DIA X 12 FEETS | 32 MM DIA X 12 FEETS |
| DIMENSIONS L-H-W | 2172 X 1525 X 838 MM | 1956 X 1375 X 736 MM |
| WEIGHT | 195 KG | 175 KG |
