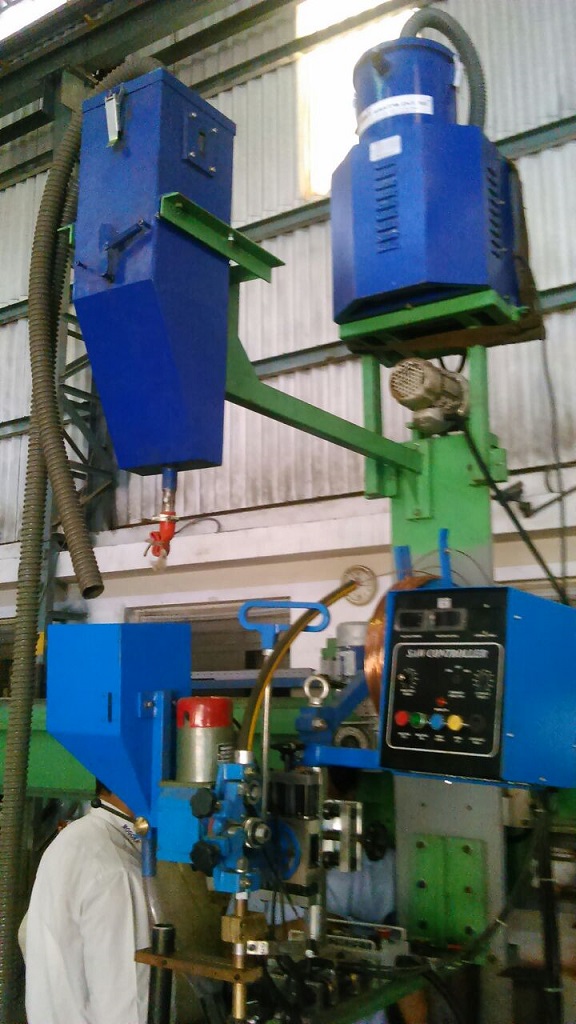

FLUX RECOVERY UNITS : MODELS HE – 2700 FR/2100 FR/1200 FR
In Engineering Industry, when the process of submerged are welding is carried out expensive flux which remains unused can be collected and reused, thus effectively cutting costs.
TECHNICAL SPECIFICATION :
| TECHNICAL DATA | HE - 2700 FR | HE - 2100 FR | HE - 1200 FR |
|---|---|---|---|
| Motor (3 Phase) | 5 H.P. 2800 RPM | 3 H.P. 2800 RPM | 2 H.P. 2800 |
| Vacuum Producer | 6 Stage Turbine | 6 Stage Turbine | 3 Stage Turbine |
| Suction Power | 2700 MM WG | 2100 MM WG | 1200 MM WG |
| Air Delivery | 350 Cubic Mtr./Hr. | 330 Cubic Mtr./Hr. | 270 Cubic Mtr./Hr. |
| Hose Diameter mm | 40MM | 40MM | 40MM |
| Capacity of Collecting Container | 30Ltrs. | 30Ltrs. | 30Ltrs. |
| Under Carriage | 2 - Fixed Wheels 2 Castor Wheel | 2 - Fixed Wheels 2 Castor Wheel | 2 - Fixed Wheels 2 Castor Wheel |
